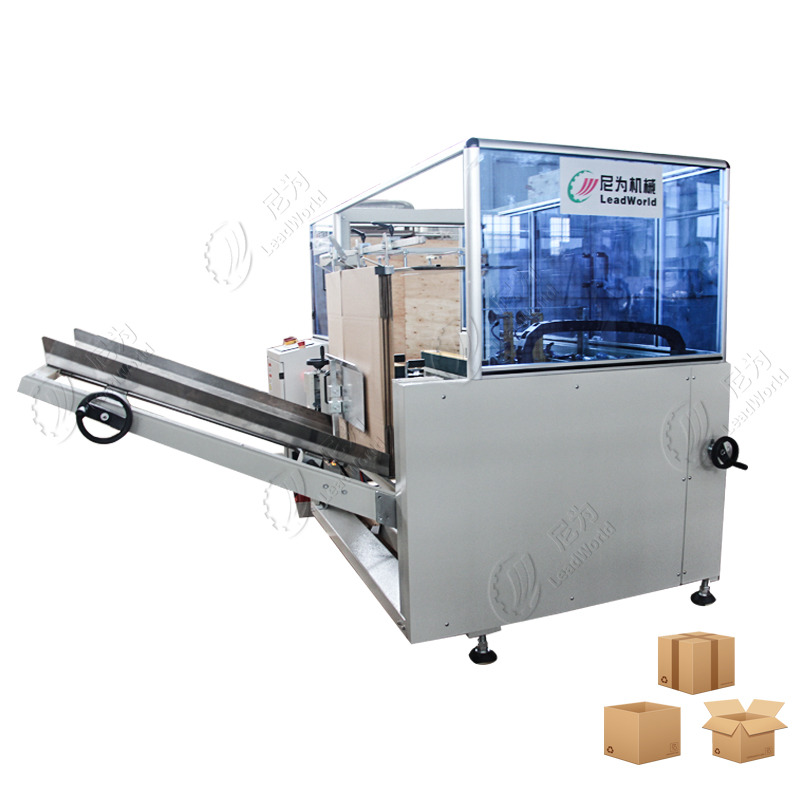

Automatic Beverage Carton Erector Case Box Erecting Machine With Bottom Strip Sealing

1 Set
MOQ
$5,987.00(>=1 Sets)
prezzo
Automatic Beverage Carton Erector Case Box Erecting Machine With Bottom Strip Sealing
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Packaging Line
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: None
Condition: New
Application: Beverage, Machinery & Hardware, Medical, Food, Chemical
Packaging Type: Bottles, CANS, Cartons, case, Barrel, Belt
Packaging Material: Plastic, Paper, Metal, Glass, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC 380V
Dimension(L*W*H): L2400*W2050*H1450mm
Weight: 550kg
Warranty: 1 Year, 12 Months
Key Selling Points: High-accuracy
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
Product name: Fully Automatic Box Carton Case Erector Erecting Machine
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Total Air Cosumption: 0.9m3/h
Work Noise: <80DB
Production Efficiency: 15/20cases/min
Equipment Air Source Pressure: 0.5-0.8Mpa
Function: Electric Carton Packer
Machine type: Sealing Packing Machine
Model: W-CE18
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certificazione: CE
Informazioni di base
Certificazione: CE
Model Number: W-CE18
Termini di pagamento e spedizione
Packaging Details: case packer wooden case
Supply Ability: 200 Set/Sets per Month
Descrizione di prodotto
Product Description
The automatic box opening machine is used to open the carton board, and the bottom of the box is folded according to
a certain procedure, then sealed with tape to be delivered to the special equipment of the boxing machine. The automatic carton forming machine and the automatic cartoning machine are the assembly line for automatic unpacking of large-volume carton, automatic folding of the lower cover, and automatic sealing of the bottom tape. The machines are all controlled by PLC+ display, and the carton suction box, unpacking and molding are completed at one time. The packaging process, such as folding bottom and back cover, is greatly convenient for operation, and is an indispensable equipment for automated scale production.

Feature:
1. Automatically complete the unpacking, forming, and bending of the bottom bottom, and complete the bottom tape sticking at the same time, saving labor and time. 2, A wide range of short-purpose cartons,it's easy and fast to adjust of different sizes of cartons. 3. The whole machine runs smoothly and reliably, the packaging effect is firm and beautiful. 4, The equipment is easy to operate and maintain
Specification
Product Name
Automatic Carton Erector Case Box Erecting Machine with Bottom Tape Sealing
Model
LW-CE18
LW-CE30
LW-CE50
Capacity
18pcs/min
30pcs/min
60pcs/min
Carton collecting quantity
100pcs(1000mm)
80pcs(800mm)
80pcs(1000mm)
Carton size
L:200-400mm
W:150-350mm
H:100-350mm
L:240-510mm
W:190-400mm
H:120-400mm
L:250-450mm
W:150-400mm
H:100-300mm
Power
220V 1ф 200W
380V 3ф 746W
380V 3ф 746W
Air consumption
0.6MPa 450L/min
0.5MPa 300L/min
0.6MPa 450L/min
Machine Size
L2400*W2050*H1450mm
L2372*W1210*H1820mm
L3120*W1250*H1740mm
Belt size
48,60,75mm
2",2.5"
2",2.5"
Machine weight
550kg
1000kg
1200kg
Product Details
Company Profile
Packing & Delivery
Delivery Time: 35-65 days (according to product quantity) Packing: the inside is wrapped with a layer of film, and the outside is packed in wooden cases
FAQ
Q1: What is your company’s main products?
filling machine, canned food production line, palletizers, sterilizers, conveyor belts, etc. If this is not the machine you want,
please visit our other machines.

Q2:Are you manufacturer or trading company?
We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.

Q3:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.

Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by SGS,ISO,CE.

Q5:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical
drawing, but also can make new machine according to your requirements.

Q6:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.

Q7: Why our customers trust and choose us?
1.manufacturer
2.we have stocks
3.delivery fast
4.senior engineer
5.competitive price
6.high quality
7.strict quality control
8.over 10 years experience
9.provide test
10.varity of goods
11.excellent after-sales services
12.advanced machinery and equipment

Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?

If you have more questions on our product, please send us an inquiry in the below.
Commonly, you will get reply in 24 hours. Thank you
