Name: Automatic Food Crash Locked Automatic Lock Bottom Folder Gluer For Paper Box Making
Brand: Automatic Food Crash Locked Automatic Lock Bottom Folder Gluer For Paper Box Making
SKU: ZH-L1100 4/6
Price: 1 USD
Availability: InStock
Rating: 5 (117 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Type: Gluing Machine

Applicable Industries: Retail, Food Shop, Printing Shops

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New

Application: Food, Commodity, Medical

Packaging Type: Cartons

Packaging Material: Film package

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V,50HZ

Dimension(L*W*H): 15500*1700*1800mm

Weight: 8T

Warranty: 1 Year, 1 Year

Key Selling Points: Energy saving

Product name: Automatic Carton Box Folder Gluer

Function: Paper Cardboard Box Gluing Machine

Box forming: Sides Fold

Glue type: Normal Cold Glue

Feeding way: Continuously Feeding

Folding way: 4 Fold 180 Degree

Speed: 450m/min

Model: ZH-L1100 4/6

Color: Grey

After Warranty Service: No service

Local ServiceÂ Location: None

After-sales Service Provided: Field installation, commissioning and training

Certificazione: CE

Informazioni di base

Certificazione: CE

Model Number: ZH-L1100 4/6

Termini di pagamento e spedizione

Packaging Details: Film package

Supply Ability: 40 Set/Sets per Month

Descrizione di prodotto

Product introduction

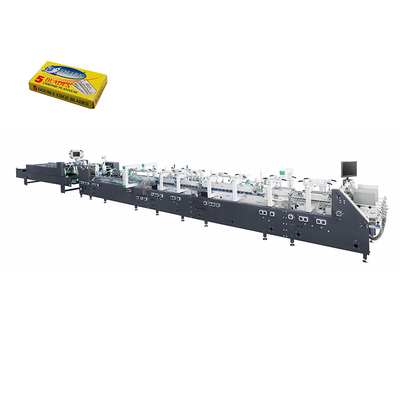

Automatic Crash Locked Automatic Lock Bottom Folder Gluer For Paper Box Making

Technical research

Product information

ZH-580PC is a multi function model,suitable for card board,E flute corrugated board,can do two fold ,four fold and bottom lock . This model has correction device and bottom lock device. Can make electrical adjusting . Has UV destroying device and Dust removing device for better gluing effect.

Main technical parameter:

Model	ZH-A1100PC
Suitable material	Card board,E flute corrugated board
Max method	Automatic continuous feeding
Max mechanical speed	450m/min
Overall dimension	1550017001800mm
Weight	8T
Power consumption	19KW

Box size

		Straight line box	double sides box	crash-lock bottom box	4-corner box	6-corner box
A	MAX	1100	1100	1000	960	950
A	MIN	180	200	180	180	300
B	MAX	1100	900	1100	800	800
B	MIN	70	120	70	80	80
C	MAX	400	200	250	150	150
C	MIN	15	20	30	25	25

Product details

Equiopped with vibating motor. With independent transmission,low

noise,with front adjustable wheels, max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are contrliied up and

down by pneumatic system easily. Feeding knifes are equipped with

pneumatic mechanism for smoother feeding.

Automatic alignment system to correct the paperfeeding,

avoiding the paper going to sides.

The prefolding section has the advantage tomake the box more plain and

easy to open,evenin some case the scoring is not very well.

Equipped with speed variator for belts,ensure the folded boxes parallel and in

good order Fast,convenient adjustment and operation module can fold boxes

synchronously or alternately.

Pressure can be adjusted according to paper thickness. For ovenlapping and

jogger devices are equipped to ensure box gluing well. After kicker is set up,

whatever speen the machine runs,the kicker can automatically follow,

no need to reset it.
