Casa /Prodotti/Erigitore automatico di casse/machinery & FM-K500 Hardware Drive Carton Case Side Box Unpacking Machine Carton Forming Machine Carton Sealer Erector

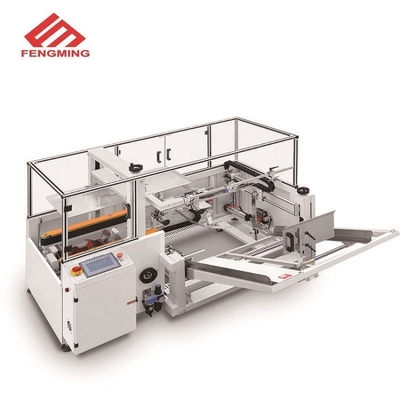

machinery & FM-K500 Hardware Drive Carton Case Side Box Unpacking Machine Carton Forming Machine Carton Sealer Erector

1 Set
MOQ
$3,000.00(1 - 4 Sets) $2,900.00(5 - 9 Sets) $2,800.00(>=10 Sets)
prezzo
machinery & FM-K500 Hardware Drive Carton Case Side Box Unpacking Machine Carton Forming Machine Carton Sealer Erector
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: SEALING MACHINE
Condition: New
Application: Machinery & Hardware
Packaging Type: Cartons, case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220/380V 50Hz
Dimension(L*W*H): 2060mm*980mm*1520mm
Weight: 495kg
Warranty: 1 Year
After-sales Service Provided: Online support, Engineers available to service machinery overseas
Certificazione: CE Certification
Product name: Carton Sealing Machine
Model: FM-K500
Unpacking speed: 5-10 boxes/min
Tape width: 48/60/75mm
Color: as your needs
Power: 220/380V 50Hz
Function: carton sealing
Informazioni di base
Certificazione: CE Certification
Model Number: FM-K500
Termini di pagamento e spedizione
Packaging Details: Normally use wooden carton, also can do fumigation
Descrizione di prodotto
Product Description



Features: manually adjust the width, height. After tank into the vertical box frame, press the start button, the automatic tank rack sucker suction box, front and rear folding cover, fold the cover is automatically pushed into the paste belt, introduced by the conveyor belt sealing once completed, without human intervention operation, automation strong, two points around the belt drive.

CONFIGURATION



1.This equipment line or stand-alone operation, automatic suction box, box, folding bottom, sealing tape, once completed

2.Stick with a solid performance and precision, smooth operation, long life and good stability

3.Standard equipment specifications, according to the need for equipment to widen, heightening custom

4.Standard table height is 630 mm (other requirements can be customized)

5.The use of advanced technology manufacturing, durable structure, preferably with a high-quality electronic and pneumatic components



TECHNICAL SPECIFICATION

Applicable carton size

150-500mm(L)*120-500mm(W)*150-500mm(H)

Conveying speed

20 m / min

Equipment size

2060mm(L)*980mm(W)*1520mm(H)

Unpacking speed

5-10 boxes/min

Power supply

220/380V 50Hz(Alternative use)

Maximum power consumption

0.18kw

Apply pressure

6kgf/cm²

Tape width

48/60/75mm(Alternative use)

Equipment weight

495kg





Product Display





Our Company





Our Exhibition
