Caratteristiche

Specificazioni

Type: Gluing Machine

Applicable Industries: Manufacturing Plant

Showroom Location: Viet Nam, Philippines, Indonesia, Colombia, Uzbekistan

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Motor, Gear

Condition: New

Application: Machinery & Hardware

Packaging Type: Film

Packaging Material: Plastic, Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V or according to your requirements

Dimension(L*W*H): 12000*3200*1900

Weight: 4000 KG

Warranty: 1 Year

Key Selling Points: Long Service Life

After Warranty Service: Video technical support

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: plastic films ,container

Supply Ability: 600 Set/Sets per Year

Descrizione di prodotto

Company name

Product description

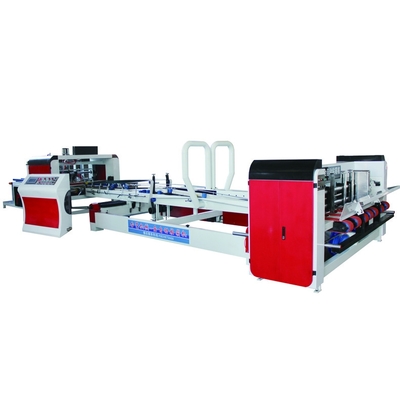

TY series full automatic box gluing machine is composed of vacuum paper feeding department, gluing and folding department and counting and stacking output department, digital display control, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode.Automatic paper supply, automatic gluing and folding, automatic counting, automatic stacking and output, average speed of gluing box is 200m/min, high speed, energy saving and labor cost saving.

Parameters :

Model number	TY-2600	TY-2800
Maximum paperboard size(mm)	2300*1000	2600*1000
Minimum paperboard size (mm)	450*170	450*170
Overall size (mm)	1200032001900	1200034001900
Power (kw)	12	12
Weight (kg)	4000	4200

Machine parts list:

1	Bearings	Harbin
2	Electric appliance	Siemens
3	PLC	Delta
4	Encoder	Delta
5	Touch screen	MCGS
6	Main motor	Hengshui
7	Draught fan	Shanghai
8	Conveyor motor	Taiwan
9	Conveyor belt	Shanghai

Products show

Finished product
