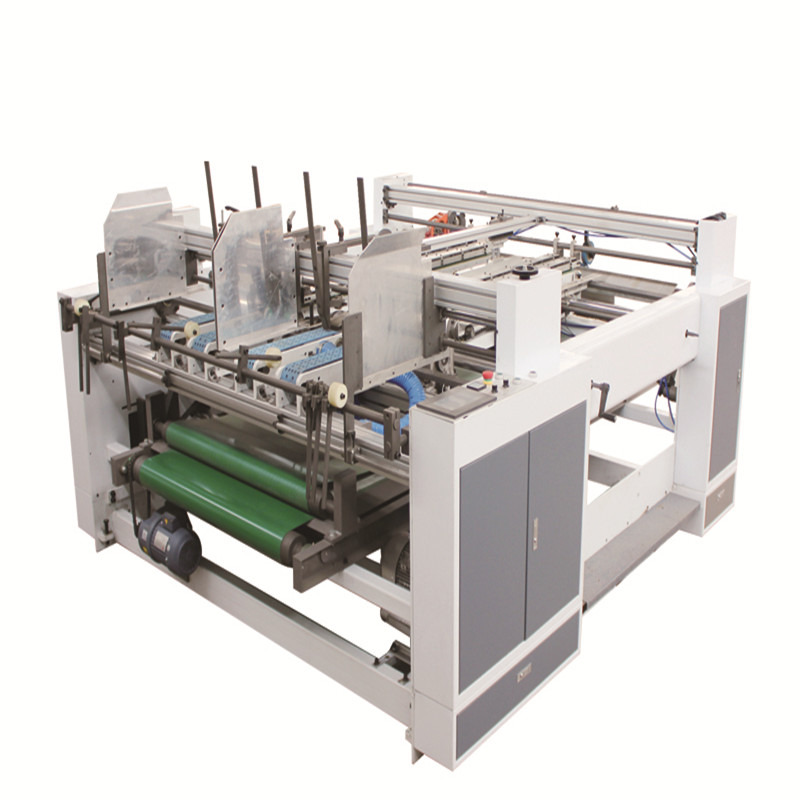

machinery & Material Double Pieces Carton Folder Gluing Machine

1.0 Sets
MOQ
machinery & Material Double Pieces Carton Folder Gluing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Gluing Machine
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Printing Shops
Showroom Location: Egypt, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Kenya, Argentina, UAE, Colombia, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition: New
Application: Machinery & Hardware
Packaging Type: Cartons, Film
Packaging Material: Plastic, Paper
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 220/380/440
Dimension(L*W*H): 2500*3500*1400mm
Weight: 2000kgs
Warranty: 1 Year
Key Selling Points: Long Service Life
Product name: semi auto folder gluing machine
Function: double pieces folder gluing machine
Box Type: Standard Box
Speed: 60-150pcs/min
Glue type: PUR Hot Melt Glue
Keyword 1: Corrugated Carton Box Gluer
Keyword 2: carton fold gluing machine
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Kenya, Argentina, South Korea, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine,
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Certificazione: ce iso
Informazioni di base
Certificazione: ce iso
Termini di pagamento e spedizione
Packaging Details: wooden boxes , plastic film ,container , carton box folder gluing machine
Supply Ability: 30 Set/Sets per Year
Descrizione di prodotto
Products Description
Semi-automatic carton folder gluing machine / double pieces carton fold gluling machine
This paper gives some sticky box machine part is provided with two cardboard stacking and stacking for AB two piece of cardboard, which helps to improve the production efficiency, the use of suction structure, help to improve the accuracy and efficiency of transportation.

The paper adopts middle docking adhesive hot melt adhesive cardboard four block positioning, accurate positioning, high precision.

After the section of the folding section, using artificial folding, effective solution to the problem of die cutting indentation and corrugated location is not good, the size of the carton size is effectively controlled.

This machine can operate two people, a person in charge of paper and stick to check the number of carton packing; after a person in charge of the cardboard folded into pressing belt, simple operation, easy to use.
Details Images
Feeding section:
1 friction feeder, equipped with two separate motor independent drive, side panel width can be fine-tuned, with 3 adjustable
Feeding knife and 3 small Feeding knife, there are 8 rubber tape which contains 4 suction belt, two separate control, retractable
rear support can be eused.
Gluing part , conveying part
2. Glue part: to match the glue itself, the use of three groups of plastic system to ensure that the finished product qualified
rate of 100%, double-slot flow of plastic road, to ensure the loss of glue invalid, improve costs, easy to disassemble, easy
to clean double pieces carton gluing machine.
3. Conveying part: Using of whole process close to the synchronization technology to ensure that the paper in the fast transport
process does not run away.

4. Paper part: the use of photoelectric automatic sensor system, high sensitivity, to ensure that the machine speed block.
5. Pressed part: the use of three groups of cylinders and photoelectricautomatic sensor system to ensure consistency and smooth.
6. Operating system: the human touch screen for the operation center and PLC connection will be warning, detection of fault, abnormal conditions and operating speed and other information displayed on the screen, at a glance, and can detect
maintenance, work records, online real-time view of timely processing, truly reflect the efficiency.
7. Electrical system: the use of well-known brands at home and abroad, in accordance with the European CE standard design, careful manufacturing, to ensure that the whole stable, high efficiency, low failure.
Product Paramenters
Model
APDG-2100
Max. finished size(expanded)
2100*1100mm
Min. finished size(expanded)
500*700mm
Number of workers
Two workers
Air pressure
0.4-0.6MPA
Power supply
380V AC 4P
Power
6.5KW
Max line speed
9200m/hour
Overall dimension
3100*2900*1500mm
N.W.
2000KG
